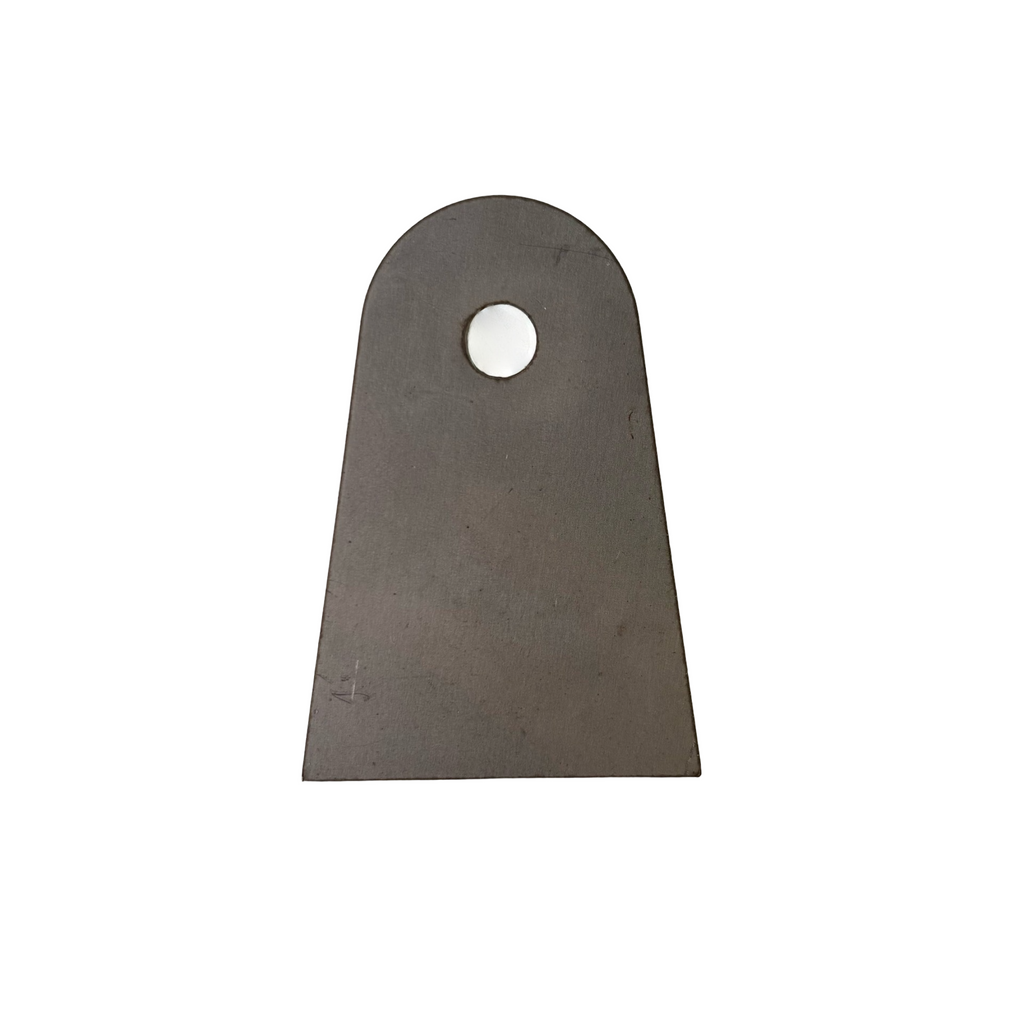

Flat Chassis Weld Tabs - Cut to any Size. (2.00" stand off)

Mayhem Metal Works

Flat Chassis Weld Tabs - Cut to any Size. (2.00" stand off)

$ 2.25

Here we have a in house design for mounting any type of suspension part or accessory need in all areas of fabrication. These brackets are the best way to attach just about anything you can think of. These tabs are computer laser cut NOT stamped out of USA made materials and are far superior in quality and finish than others available on the market.

These are available in many different hole sizes which can be ordered in any size needed up to 5/8" safely. Metric sizes available also but please contact us for sizes that are not listed in the drop down menu.

Normally with laser cut parts as well as water jet the hole size must be equal or greater than the thickness of the material chosen. In other-words, If you would like a 3/8" thick stainless tab the minimum hole size normally available would be 3/8". Don't worry! If you need a smaller hole size we can drill them for you on our CNC mill most all our parts are available as blanks as well if you want to drill them yourself or need a special hole size for tapping purposes or need a different stand off. If you need it we can make it happen!!!

Email us at mmwfabs@gmail.com

These are available in-

  • CR Mild steel
  • 304 Stainless steel
  • 6061 Aluminum
  • 6AL-4V Titanium
  • And soon 4130 CM steel
  • This tab has a mounting distance of 2.00" from attachment to bolt hole center.

I promise once you use these tabs you won't buy them anywhere else.
